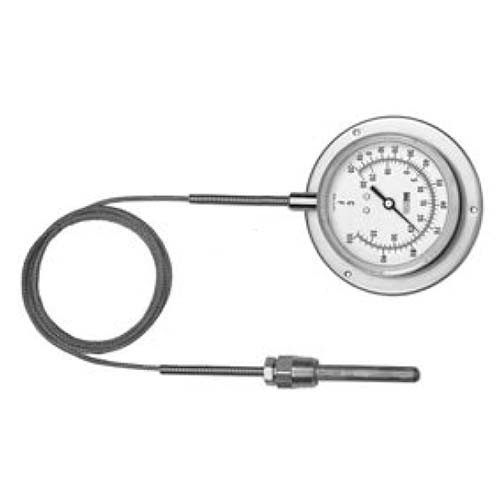

ALLTEMP Union Connected Dial Thermometers - 14-45BL-180
Click to enlarge
Dial Size : 4 1/2" - Range : 0 to 180°F & °C - Capillary : 5'
Union Connected Dial Thermometers
Offered in 3 1/2" and 4 1/2" dial sizes the BL series is furnished with braided copper capillary and a 1/2" NPT brass union connection. Sensor bulb insertion is 2 5/8" below the mounting thread. Case configuration is stainless steel back flange type for wall or surface mounting, capillary outlet at case bottom*. The BL series construction is well suited to applications such as hot and chilled pipeline systems, tanks, coolers and air ducts.
|Family||Union Connected Dial Thermometers|
