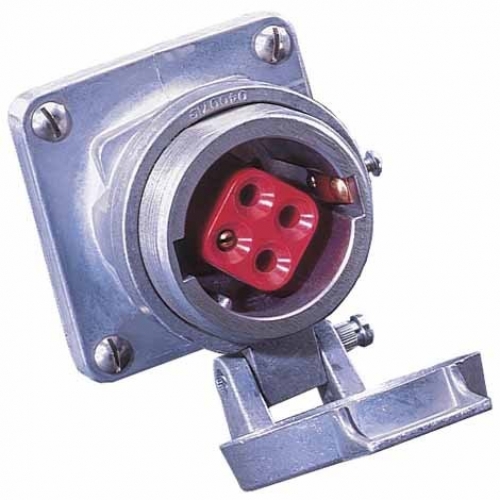

Arktite AR342 - Receptacle with Spring Door - 30A 600V 3W 4P - Grounding Style 2
Click to enlarge
Crouse-Hinds Arktite AR342 Receptacle with Spring Door, 30Amp, 600VAC/250VDC, 3-Wire, 4-Pole, Grounding Style 2, NEMA 4 Watertight
Arktite Heavy Duty Circuit Breaking Plugs and Receptacles
Industrial Heavy Duty Non-hazardous Areas
NEMA 4 Watertight
Arktite circuit breaking plugs and receptacles are used:
To supply power to portable electrically operated devices such as motorgenerator sets, compressors, heating and cooling units, welders, conveyors, lighting systems and similar equipment
Where temporary power is needed, such as at trailers, building units, heavy machinery and similar equipment
Wherever electrical loads must be quickly disconnected from power source
In a typical installation, where a large machine utilizes a number of electrical motor drives and for ease of adjustment, removal, maintenance and replacement, each motor is connected by portable cord and Arktite receptacles rather than permanently wired
In areas where dust, dirt, moisture and corrosion are a problem
Indoors and outdoors in non-hazardous areas of chemical plants, process industry facilities, meat packing plants, manufacturing plants and similar industrial locations
Circuit breaking: plugs through 100 ampere rating may be disconnected under load; 150-400 ampere units are for service disconnect use only.
Receptacles accept only plugs of the same amperage rating, style and number of poles, making it impossible to mismate, and provides for positive polarization.
Extra wide electrical spacing allows for maximum safety.
Insulator materials are the result of intensive testing. Selection has been made based on highest dielectric strength, maximum mechanical and impact resistance, lowest moisture absorption and highest arc tracking resistance.
A variety of installations is possible due to the availability of several types of back boxes.
Designed to withstand rough usage and the effects of adverse environments.
Reversible interiors, 30, 60 and 100 ampere (except 30 and 60 ampere, 5-pole) Arktite plug and receptacle interiors are interchangeable using a screwdriver. This makes it possible to feed a normally de-energized receptacle from an energized plug with usual Arktite safety; no energized contacts are exposed
|Family||Arktite Heavy Duty Circuit Breaking Receptacle Assemblies and Housings|
|Voltage (V)||600VAC / 250VDC|
|Hub Size||3/4" - 1"|
|Sold Separately:||ARE Back Box|
|UL Listed||UL / CSA Listed|
Appleton Powertite ADR3034
Killark Versamate VR342
